Tricycle ladders

SERIES 4200

THREE-PIECE PROFESSIONAL LADDER

4207, 4208, 4209, 4210, 4211, 4212, 4213, 4215

Backrest angle 65-75°.

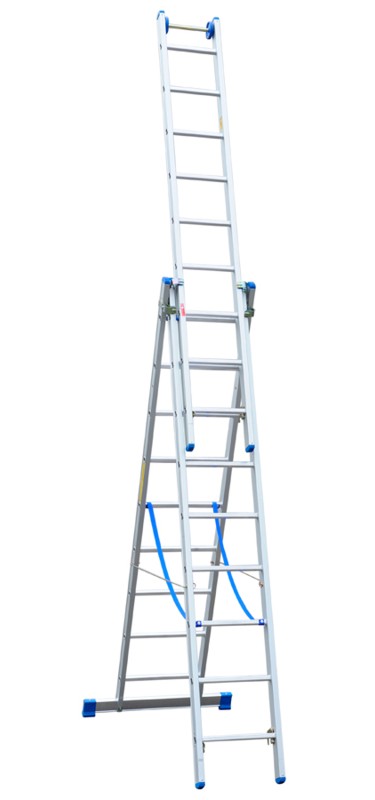

Multifunctional aluminium ladder for versatile and professional use.

Consisting of three parts, with non-slip fully corrugated rungs of 30 mm x 25 mm.

Can be used as a freestanding ladder, as a free-standing ladder and in the stairway setting models: 4207, 4208, 4209, 4210.

The narrowest element can be used as a separate fixed ladder.

Available up to an overall height of 10.10 m (3 x 15 rungs).

Models 4211-4215 equipped with additional stabilizer.

Corresponds to standard PN-EN 131.

Wheel casters can be mount.

max150

Technical data

Catalogue number
4207
4208
4209
4210
4211
4212
4213
4215
Number of steps
7+7+7
8+8+8
9+9+9
10+10+10
11+11+11
12+12+12
13+13+13
15+15+15
Overall height
H1
[m]
4,20
5,05
5,88
6,73
7,56
8,41
8,97
10,10
Max. ladder standing height in use position H1
[m]
3,07
3,86
4,64
5,43
6,22
7,01
7,54
8,59
Working height in setting H1
[m]
5,07
5,86
6,64
7,43
8,22
9,01
9,54
10,59
Height after installation
H2
[m]
2,92
3,45
3,98
4,52
4,78
5,29
5,82
6,89
Max. ladder standing height in use position H2
[m]
1,88
2,12
2,4
2,68
2,96
3,17
3,43
3,98
Working height in setting H2
[m]
3,88
4,12
4,4
4,68
4,96
5,17
5,43
5,98
Height after installation
H3
[m]
1,88
2,12
2,4
2,68
2,96
3,17
3,43
3,98
Max. ladder standing height in use position H3
[m]
1,21
1,47
1,73
2,01
2,26
2,53
2,79
3,32
Working height in setting H3
[m]
3,21
3,47
3,73
4,01
4,26
4,53
4,79
5,32
Max. standing height on a ladder in stair position
[m]
1,76
2,02
2,27
2,55
lack
Working height in stair position
[m]
3,76
4,02
4,27
4,55
lack
Width X/Y/Z
[m]
0,34 / 0,39 /0,47
0,34 / 0,40 /0,47
0,35 / 0,42 /0,49
Width of basic stabilizer
D
[m]
0,80
0,85
0,95
1,20
1,40
Additional stabiliser width
D1
[m]
lack
0,81
Spacing
C
[m]
1,40
1,62
1,79
1,99
2,14
2,36
2,59
2,96
Height after folding
L
[m]
1,97
2,25
2,53
2,81
3,09
3,38
3,65
4,21
Depth after folding
F
[m]
0,16
0,16
0,18
0,19
0,19
0,19
0,19
0,20
Weight
[kg]
11,05
13,3
16,4
18,8
21,2
23
24
32,6

NOTE: The dimensions given in the table are approximate. The photographs are for illustrative purposes only.

Gallery

The narrowest element can be used as a separate fixed ladder.
