TP 8020

Stools and landings

SERIES 8020

FOLDING STOOL

8022

Robust aluminum stool with one-sided entrance for home, office, warehouse, shop.

Available in a version with three steps.

Foldable in a quick and convenient way.

Non-slip surface of all steps.

Conforms to EN 14183.

New construction – a cross stiffening the stairs.

max150
8020-1

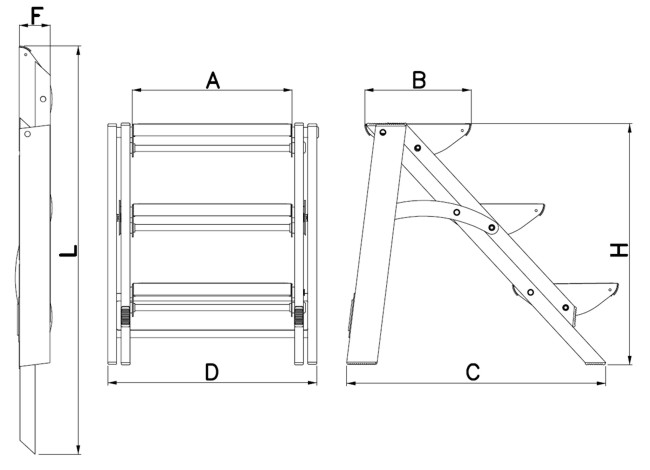

Technical data

Catalogue number
8022
Number of steps
3
Height after installation
H
[m]
0,70
Max. standing height on the stool in the position of use
[m]
0,70
Working height
[m]
2,70
Width
D
[m]
0,47
Spacing
C
[m]
0,75
Platform (width x depth)
A x B
[m]
0,36×0,22
Height after folding
L
[m]
1,13
Depth after folding
F
[m]
0,08
Weight
[kg]
6,50

NOTE: The dimensions given in the table are approximate. The photographs are for illustrative purposes only.

Gallery

8020-2
8020-820P-1
8020-1
8022_3
8022_4
8022zlozone
8022_2
produkty_drabina_8022_foto2
Previous
Next

Foldable in a quick and convenient way.
