TP 8100P

Stools and landings

SERIES 8100P

FOLDING STOOL WITH HANDRAIL

8123P, 8124P

Solid aluminum stool for use in offices, warehouses, shops and home use.

Foldable in a quick and convenient way.

Equipped with a folding railing for easy work.

Available in variants with 3 and 4 degrees.

All steps are made of a special aluminium profile with an anti-slip surface.

The feet are made of non-slip plastic.

Conforms to EN 14183 standard.

New construction – a cross stiffening the stairs.

max150
8100P-1

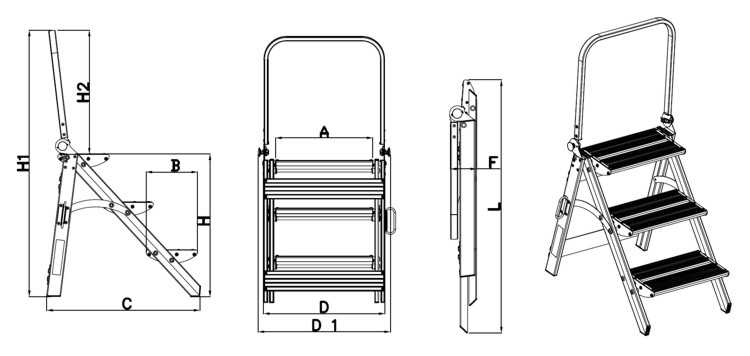

Technical data

Catalogue number
8123P
8124P
Number of steps
3
4
Height to platform after erection
H
[m]
0,70
0,93
Height with open bow (when spaced)
H1
[m]
1,30
1,53
Height from platform to handle
H2
[m]
0,60
Max. standing height on the stool in the position of use
[m]
0,70
0,93
Working height
[m]
2,70
2,93
Width
D
[m]
0,59
Spacing
C
[m]
0,75
0,99
Platform width x depth
A x B
[m]
0,47 x 0,25
Height after folding
L
[m]
1,14
1,46
Depth after folding
F
[m]
0,12
Weight
[kg]
10,4
12,8

NOTE: The dimensions given in the table are approximate. The photographs are for illustrative purposes only.
