Stairs 17000

Stairs

SERIES 17000

AID STUDIES

TP 17000

AID STUDIES – a custom-made product of TP 17000 Safe and stable construction.

The product complies with the standard PN-EN ISO 14122-3 Steps with a depth of 20 cm and densely grooved surface, comfortable handrails.

Low weight of stairs due to light metal construction, connected by steel elements.

Simple operation of the stairs, comfortable movement thanks to the use of running wheels equipped with foot brakes swivel wheel.

Possibility of making a platform up to 3 m with grading every 20 cm.

Distance between the steps:

  • with an inclination angle of 45° – 210 mm,
  • with an inclination angle of 60° – 240 mm.
max150

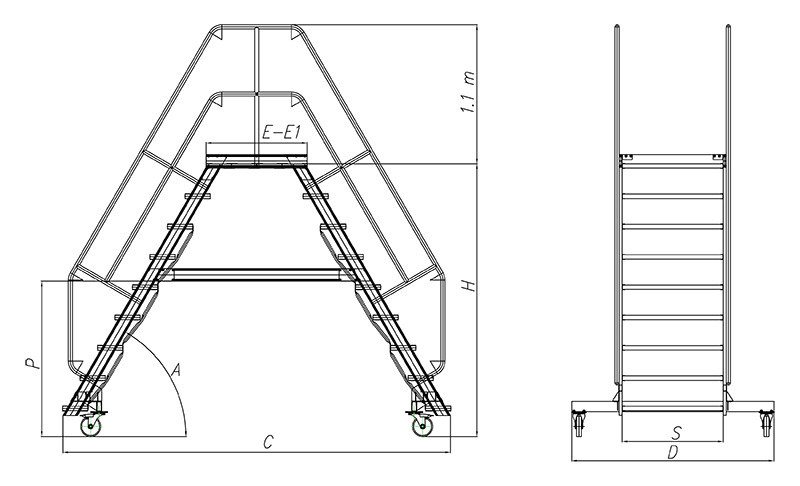

Technical data

TYPE
17044
17046
17048
17050
17052
17054
17056
17058
17060
Stairway width
S
[m]
0,80
Platform dimensions
ExS
[m x m]
0,80 x 0,80
Tilt angle
A
[°]
45
Number of stairs
3
4
5
6
7
8
9
10
11
Height to platform
H
[m]
0,87
1,08
1,29
1,50
1,71
1,92
2,13
2,34
2,55
Platform length
E
[m]
0,80
Width
D
[m]
1,20
1,60
Spacing for 0.80×0.80m
C
[m]
2,06
2,48
2,90
3,32
3,74
4,16
4,58
5,00
5,42
The clearance
P
[m]
0,48
0,69
0,90
1,11
1,32
1,53
1,74
1,95
TYPE
17074
17076
17078
17080
17082
17084
17086
17088
17090
Stairway width
S
[m]
1,00
Platform dimensions
E1xS
[m x m]
1,00 x 1,00
Tilt angle
A
[°]
45
Number of stairs
3
4
5
6
7
8
9
10
11
Height to platform
H
[m]
0,87
1,08
1,29
1,50
1,71
1,92
2,13
2,34
2,55
Platform length
E1
[m]
1,0
Width
D
[m]
1,20
1,60
Spacing for 1.00×1.00m
C
[m]
2,26
2,68
3,10
3,52
3,94
4,36
4,78
5,20
5,62
The clearance
P
[m]
0,48
0,69
0,90
1,11
1,32
1,53
1,74
1,95
TYPE
17144
17146
17148
17150
17152
17154
17156
17158
17160
Stairway width
S
[m]
0,80
Platform dimensions
ExS
[m x m]
0,80 x 0,80
Tilt angle
A
[°]
60
Number of stairs
3
4
5
6
7
8
9
10
11
Height to platform
H
[m]
0,96
1,20
1,44
1,68
1,92
2,16
2,40
2,64
2,88
Bridge length
E
[m]
0,80
Width
D
[m]
1,20
1,60
Spacing for 0.80×0.80m
C
[m]
1,68
1,96
2,24
2,51
2,79
3,07
3,34
3,62
3,90
The clearance
P
[m]
0,67
0,51
0,75
0,99
1,23
1,47
1,71
1,95
TYPE
17174
17176
17178
17180
17182
17184
17186
17188
17190
Stairway width
S
[m]
1,00
Platform dimensions
E1xS
[m x m]
1,00 x 1,00
Tilt angle
A
[°]
60
Number of stairs
3
4
5
6
7
8
9
10
11
Height to platform
H
[m]
0,96
1,20
1,44
1,68
1,92
2,16
2,40
2,64
2,88
Platform length
E
[m]
1,00
Width
D
[m]
1,20
1,60
Spacing for 0.80×0.80m
C
[m]
1,68
1,96
2,24
2,51
2,79
3,07
3,34
3,62
3,90
Spacing for 1.00×1.00m
C
[m]
1,88
2,16
2,44
2,71
2,99
3,27
3,54
3,82
4,10
The clearance
P
[m]
0,67
0,51
0,75
0,99
1,23
1,47
1,71
1,95

NOTE: The dimensions given in the table are approximate. The photographs are for illustrative purposes only.

Gallery

Possibility of making a platform up to 3 m with grading every 20 cm.
